KEN-840(Audio Mixing Console (8 Bus)) > SR 시스템

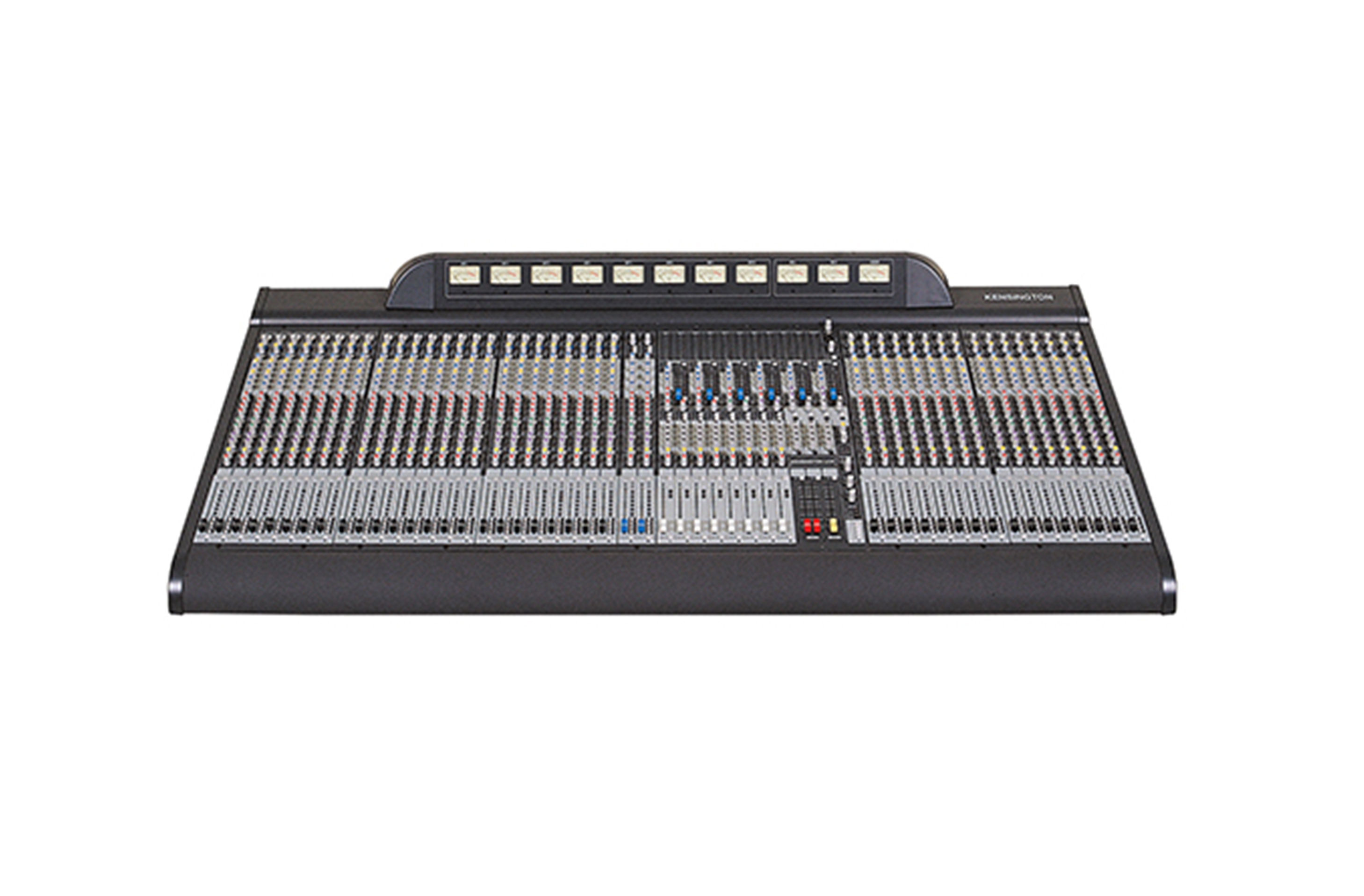

KENSINGTON-840

  전기적 특성

  MIC INPUT

 XLR 3 type female Electronically Balanced

Minimum load

  >2kΩ

   Nominal level

- 60dBu to +10dBu(+30dBu Max.)

 Hi-Z I INPUT

 TRS Jack socket Electronically Balanced

  Minimum load

 >30kΩ

  Nominal level

  -34dBu to +36dBu

 STEREO INPUT(1)

 XLR3 type female Electronically Balanced

  Minimum load

  >10kΩ

  Nominal level

 - 20dBu to +10dBu(+30dBu Max.

 STEREO INPUT(2)

  TRS Jack socket Electronically Balanced

  Minimum load

  >10kΩ

   Nominal level

  -14dBu to +16dBu

  RETURN INPUT

 TRS Jack socket Electronically Balanced

  Minimum load

  >10kΩ

    Nominal level

- 10dBv/+4dBu(+10dBv/+24dBu Max.)

 PB INPUT

  RCA pin type Unbalanced

 Minimum load

 >15kΩ

   Nominal level

  -10dBv

  INSERTION RETURN

  TRS Jack socket Electronically Unbalanced

  Minimum load

  >15kΩ

  Nominal level

  0dBu(+20dBu Max.)

 TB MIC INPUT

 XLR3 type female Electronically Balanced

 Minimum load

  >3kΩ

 Nominal level

 -60dBu to -22dBu

 MIX OUTPUT

  XLR3 type male Electronically Balanced

  Output Impedance

  <150Ω

 Minimum load

  >600Ω

  Nominal level

 0dBu(+22dBu Max.)

 GROUP OUTPUT

XLR3 type male Electronically Balanced

 Output Impedance

 <150Ω

Minimum load

  >600Ω

   Nominal level

  0dBu(+22dBu Max.)

  AUX OUTPUT

  XLR3 type male Electronically Balanced

  Output Impedance

  <150Ω

 Minimum load

  >600Ω

  Nominal level

   0dBu(+22dBu Max.)

  MONITOR OUTPUT

  XLR3 type male Unbalanced

 Output Impedance

   <150Ω

 Minimum load

  >2kΩ

  Nominal level

  0dBu(+18dBu Max.)

  INSERTION SEND

  TRS Jack socket Unbalanced

   Output Impedance

  <150Ω

   Minimum load

  >2kΩ

 Nominal level

  0dBu

 DIRECT OUTPUT

  TRS Jack socket Unbalanced

  Output Impedance

  <150Ω

  Minimum load

   >2kΩ

 Nominal level

   0dBu

 REC OUTPUT

  RCA pin type Electronically Unbalanced

  Output Impedance

  <150Ω

  Minimum load

  >2kΩ

  Nominal level

  -10dBv

PHONES OUTPUT

TRS Jack socket Unbalanced

   Minimum Load

>35Ω

   Maximum Power

100mW /35Ω

LAMP

XLR 4type female(pin3=V+, pin4=V-)

   Output Voltage

1.5V to 12V (between pin 3 and 4)

NOISE LEVEL

EIN

<-127dBu(MIC to Mix +60dB input gain with 150Ω temination,
20Hz to 22kHz)

Residual Noise

<-90dB(Mix O/P with no signal assignment,
20Hz to 22kHz)

DISTORTION

<0.05%(20Hz to 20kHz, MIC to MIX O/P +16dB input gain at +
20dBu output)

C.M.R.R.

>80dB(@1kHz +40dB input gain)
>60dB(@20kHz +40dB input gain)

CROSS TALK

Fader attenuation

Mute attenuation

사용전원

DC ±18V/+48V

소비전력

 300W(40ch)

중량(세트)

88.5kg

 포장중량

  134kg

외형(세트)

 1885(W)x226(H)x792(D)mm
