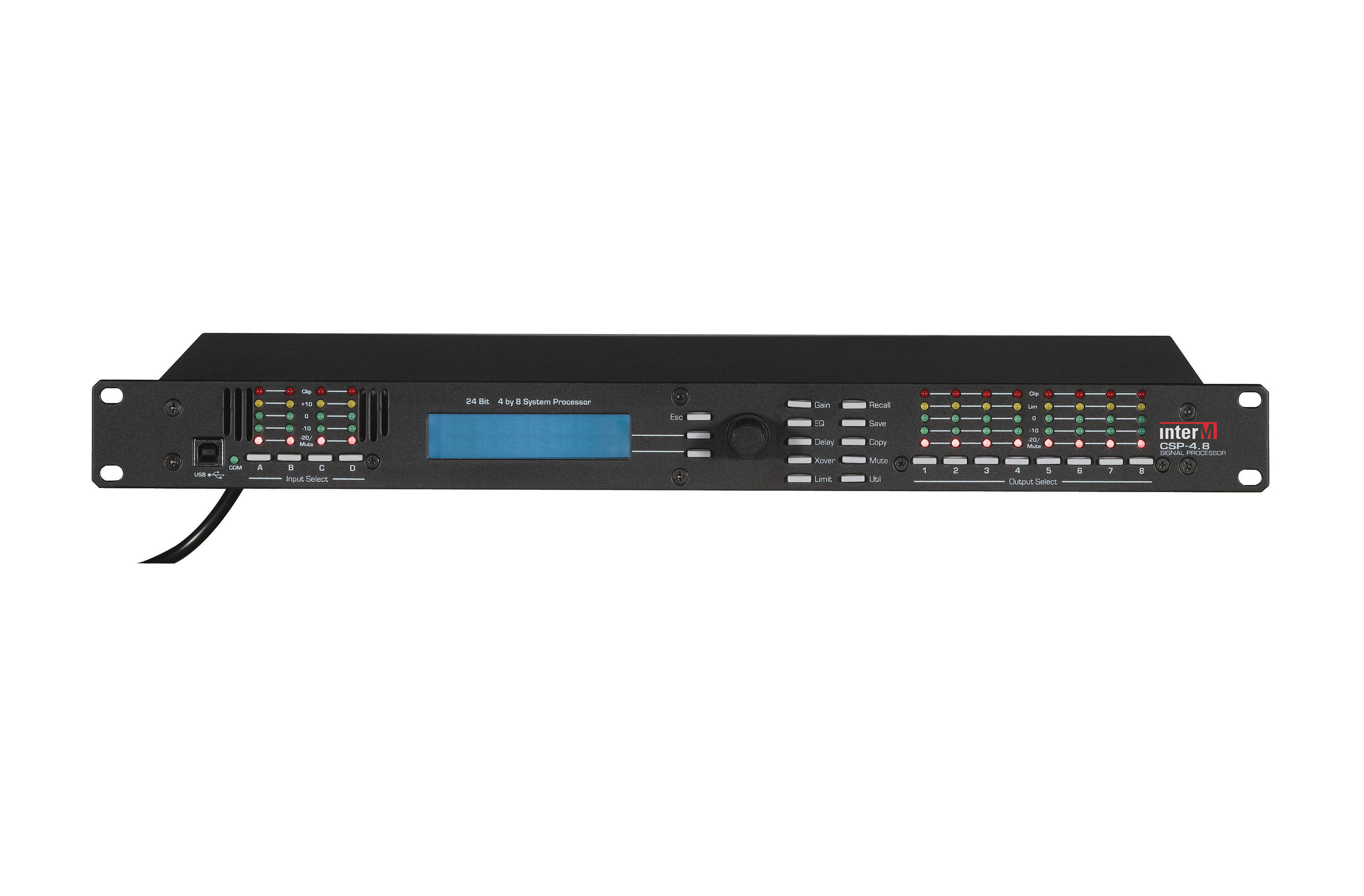

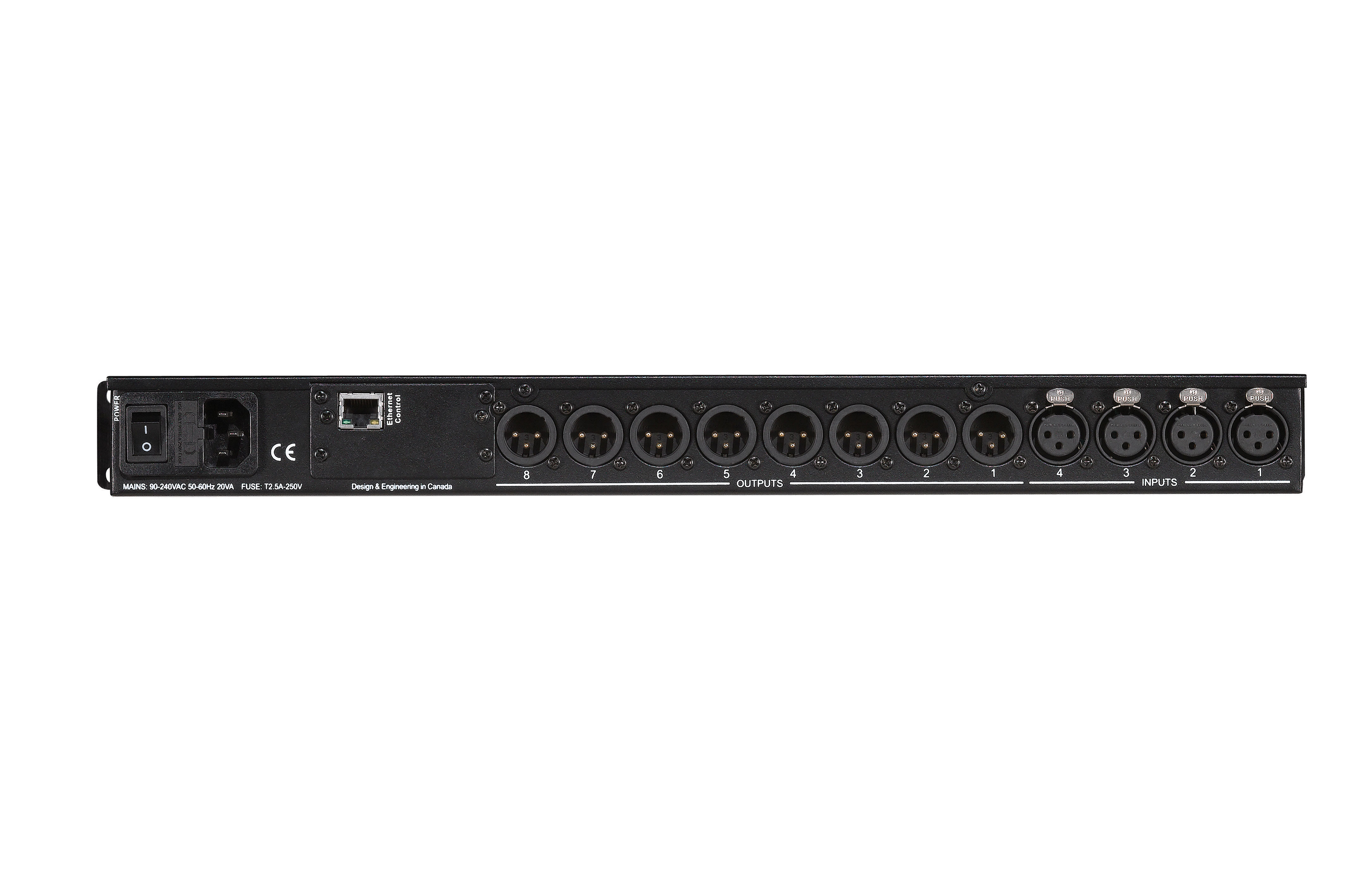

CSP-4.8

Input

Active Balanced, 18kΩ

Max. Input Level

+20dBu

Input Gain Range

-40dB to +12dB

Output

Active Balanced, 112Ω

Max. Output Level

+20dBu

Output Gain Range

-40dB to +12dB

EQ

EQ Filter Types

1st or 2nd Order High or Low Shelf, Parametric

Shelving Filter Boost/Cut Range

±15dB

Shelving Filter Frequency Range

Low Shelf 19.7Hz to 2kHz, High Shelf 3.8kHz to 21.9kHz

Parametric Filter Boost/Cut Range

+15dB/-30dB

Parametric Filter Frequency Range

19.7Hz to 21.9kHz, 1/24 Octave Steps

Parametric Filter Bandwidth

Four Octaves to 1/64 Octave

Input and Output Delay

0-682 milliseconds

Crossover

HPF and LPF Frequency Range

19.7Hz to 21.9kHz, Off

Available Filter Types

12dB/Oct Butterworth, 12dB/Oct Bessel, 12dB/Oct Linkwitz-Riley

18dB/Oct Bessel, 18dB/Oct Linkwitz-Riley

24dB/Oct Butterworth, 24dB/Oct Bessel, 24dB/Oct Linkwitz-Riley

48dB/Oct Butterworth, 48dB/Oct Bessel, 48dB/Oct Linkwitz-Riley

Limiter

Threshold Range

-20dBu to +20 dBu

Ratio Range

1.2:1 to INF:1

Attack Time Range

0.5ms to 50ms

Release Time Range

10ms to 1 Second

Frequency Response

20Hz to 20kHz, ±0.25dB

THD

<0.01% @ 1kHz, +20dBu

Dynamic Range

>110dB 20Hz - 20kHz unweighted

Audio Sampling Rate

48kHz

Propagation Delay

1.46mS

Signal LEDs &Clip

Inputs: -20/Mute, -10, 0, +10, Clip (dBu or VU)

Outputs: -20/Mute, -10, 0, Limit Threshold, Clip (dBu or VU)

AC Requirements

AC 220V, 60Hz

Environmental

40°F - 120°F (4°C-49°C) Non-condensing

Weight

4.08kg

Dimensions(WxHxD)

483 x 44 x 216mm
