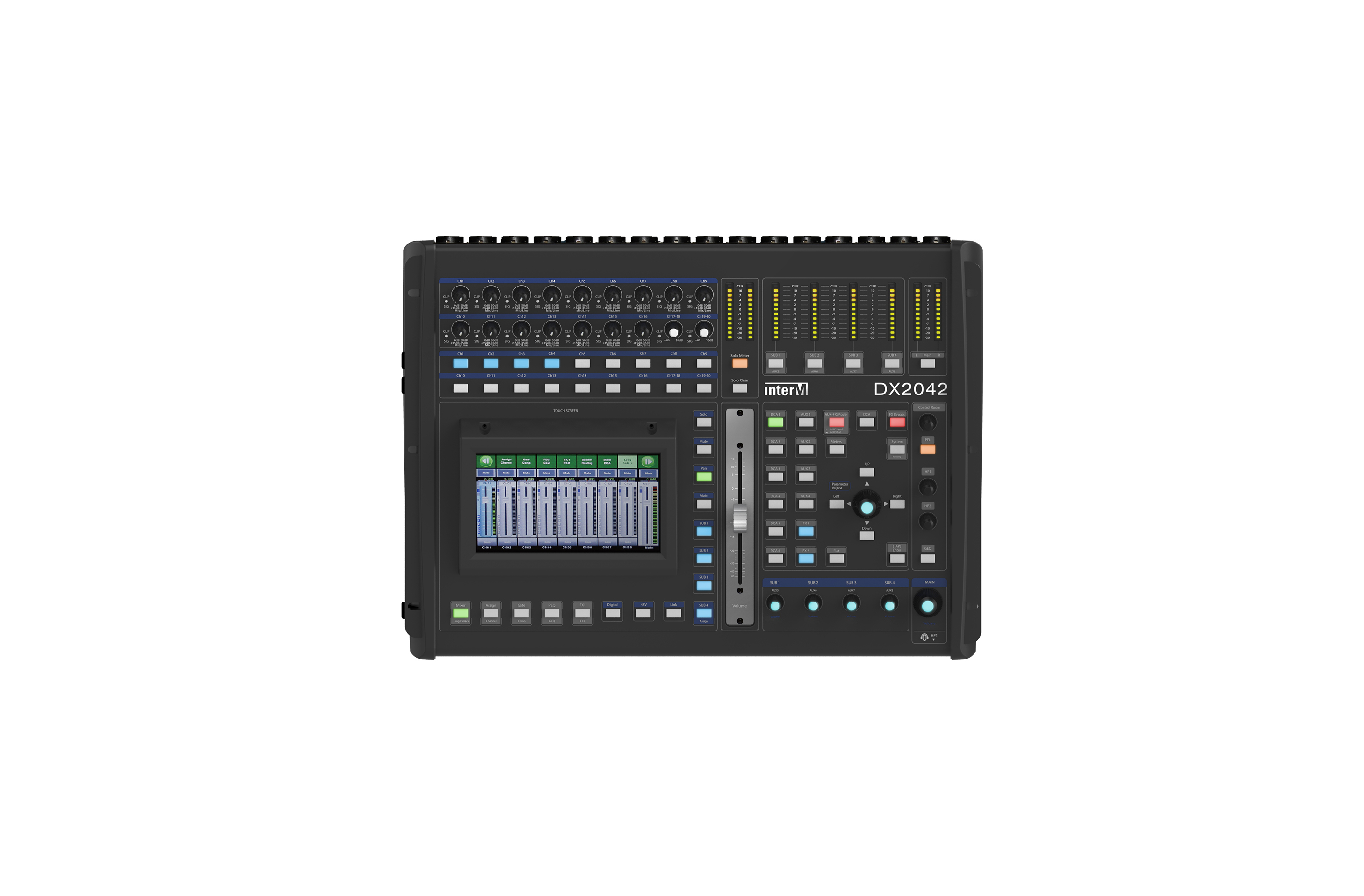

DX2042(Digital Mixer) > SR 시스템

DX2042

Microphone input

Electronically balanced

Frequency Response to direct Output

20Hz~20kHz at 0dBu±1.5dB

Distortion (THD&N) to Main Output

<0.01% at 0dBu 1kHz

SNR (Signal to Noise Ratio)

104dB

Maximum Input Level

+22dBu

Phantom Power(+/-3V)

+48VDC

Line inputs

Unbalanced

Frequency Response to direct Output

20Hz~20KHz at 0dBu±1.5dB

Distortion (THD&N) to Main Output

<0.01% at 0dBu 1kHz

Gain

-15dBu~+35dBu

Maximum Input Level (Gain at 0dBu)

+20dBu

AUX1~2 inputs

Balanced (2 stereo pair)

Frequency Response to Main Output

20Hz~20KHz at +4dBu±1.5dB

Distortion (THD&N) to Main Output

<0.01% at 0dBu 1kHz

Gain

-∞ to +10dBu

Maximum Input Level

+22dBu

USB

Frequency Response to Main Output

20Hz~20KHz at +4dBu 1.5dB

Distortion(THD&N) to Main Output

<0.01% at 0dBu 1KHz

Gain

-∞ to +10dBu

Maximum Input Level

+22dBu

Main Outputs

Maximum Output Level

+20dBu

AUX1~4 Outputs

Maximum Output Level

+20dBu

SUB1~4 Outputs

Maximum Output Level

+20dBu

Tape Outputs

Maximum Output Level

+14dBu

Control Room Outputs

Maximum Output Level

+20dBu

PHONE OUT

HP1/HP2 Level

+20dBu

System Crosstalk

Input to Output(at +4dBu 1kHz)

-83dBu

Adjacent Channels(at +4dBu 1kHz)

-82dBu

Noise(Bus noise)

-84dBu

Noise Gate

Threshold Range

-84dBu - 0dB

Attack time

0.5mS ~ 200mS

Relesae time

5mS~2S

Compressor

Threshold Range

-30dBu -+20dB

Attack time

10mS ~ 150mS

Relesae time

10mS~1S

Ratio

1:1 to 24:1

Gain

0dBu - +24dB

EQ

Low (LowPass or LowShelf)

21Hz~19.2kHz +/- 24dB

Low Mid

21Hz~19.2kHz +/- 24dB

High Mid

21Hz~19.2kHz +/- 24dB

High(HighPass or HighShelf)

21Hz~19.2kHz +/- 24dB

Digital Audio

ADC Dynamic Range

114dB

DAC Dynamic Range

114dB

Internal Processor

32-bit , floating point

ADC,DAC bit depth

24bit

Impedances

Microphone input

1.4kΩ

Channel Isert return

2.5kΩ

All other inputs

10kΩ or greater

Tape out

1kΩ

All other output

120Ω

operating free-air temperature range

0~40℃

storage temperature range

-20℃~60℃
